Support Camera Tracking With RS232, RS485, UDP 8CH Sound System Digital Signal Processor DSP
The MU-88 audio processor is a freely designed audio processing and control system.
It adopts advanced DSP processing technology, has a new automatic mixing, Feedback elimination,Echo cancellation,Noise cancellation etc, targeted to solve various practical problems in the application scene.
Main Features:
- Professional audio processor support 8way analog input and output a,It provides low delay and high fidelity audio signal transmission under the support of high broadband network.
- Processor :ADI SHARC 21489@450 MHz SIMD;
- DSP processing capacity :400 MIPS, 1.6 GFLOPS;
- Provide 8 devices for online operation at the same time;
- Built-in one in one out USB sound card, support music playback, recording and soft video conference (such as: ZOOM, Tencent conference, Dingding conference, etc.);
- Bus type AEC, tail time: 512ms, convergence rate: 60dB/S, echo cancellation amplitude: 60dB;
- Independent channel AFC (feedback suppression), using notch algorithm, sound transmission gain increase amplitude: 10dB;
- Noise suppression (ANS), signal-to-noise ratio increased by 18dB
- Dodge device (Ducker);
- Noise gain compensator (ANC)
- Gain sharing automatic mixing (AMC), Gate Mixer;
- 12 period of British equilibrium parameter, provides 5 kinds of filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass;
- Provides customized operation interfaces for terminal users. A maximum of 30 devices can be managed on one interface.
- Support camera tracking;
- With 8-way GPIO;
- With the central control function, support RS232, RS485, UDP three control modes, can be the system power, signal switching, environmental control, audio control and other overall control, to achieve a key to open the system required functions.
- 1U Whole aluminum chassis
Specification:
| Model No. | MU88 | | DSP Processing | ADI SHARC 21489@450 MHz SIMD | | Number of analog channels | 8 Input +8 Output | | Core Algorithm | Automatic mixing, feedback elimination(AFC), echo elimination(AEC), noise elimination(ANC) | | GPIO | 8 ( Including input and output) | | RS232/RS485 | 1 | | RJ45 control interface | 1 | | USB Port | 1 | | Input gain | 0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/48dBu | | Input impedance (balance -type) | 5.4KΩ | | Output impedance (balance -type) | 600Ω | | Weight | 3Kg | | Size | 482*260*45mm | | Working Power Supply | AC110V-220V,50Hz/60Hz | |
Software:
Hot DSP Compare:

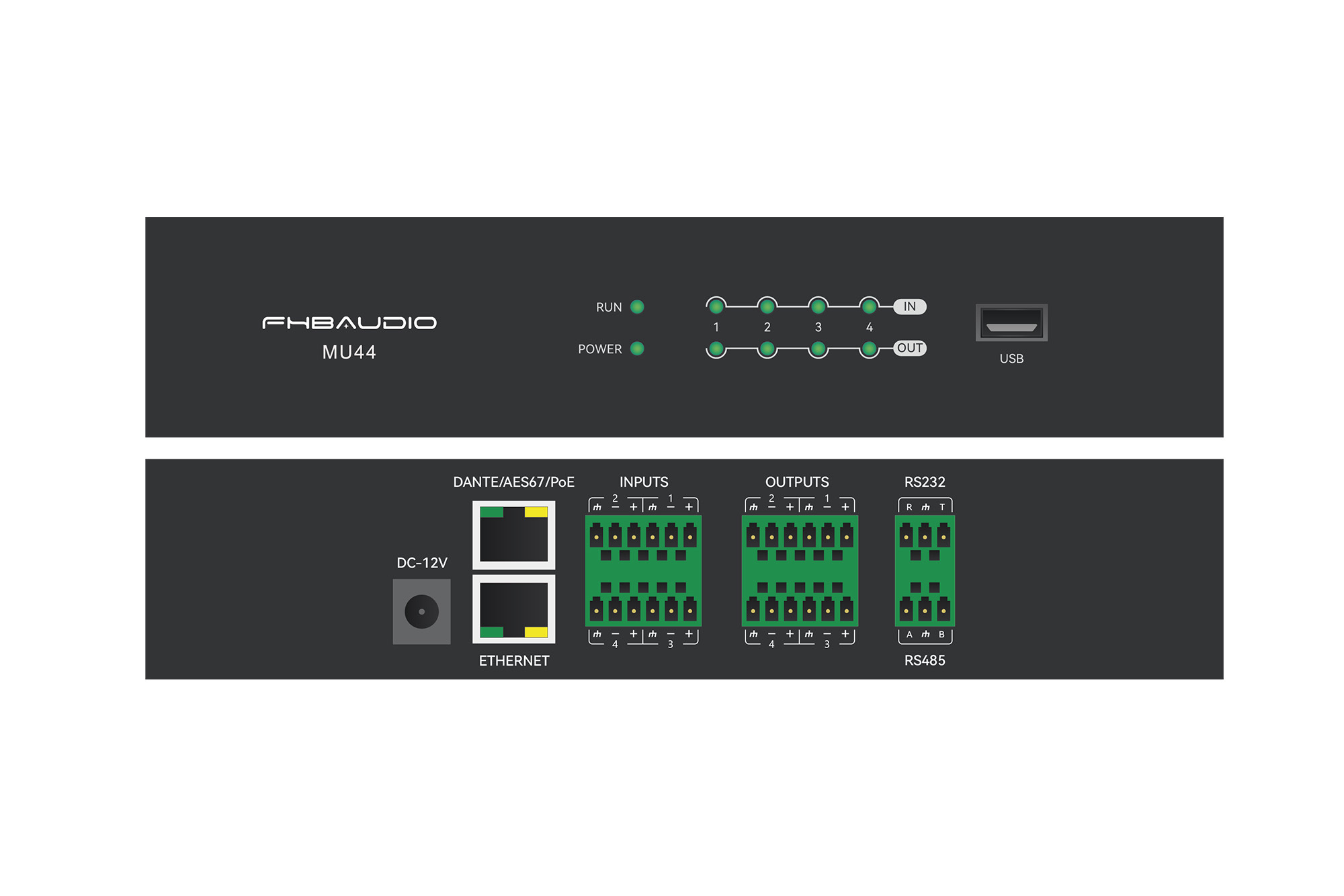

| 4CH MINI DSP With USB Sound Card - Analog input channel: 4
- Analog output channel: 4
- Built-in two in two out USB sound card, support music playback, recording and soft video conferencing ,Such as: ZOOM, Tencent Conference, Dingding conference, etc.;
- Two channels independent AEC, tail time: 512ms, convergence rate: 60dB/S, echo cancellation amplitude: 60dB; Independent channel AFC (feedback suppression), using notch algorithm, sound transmission gain increase amplitude: 10dB; Noise suppression (ANS), signal-to-noise ratio increased by 18dB
- Eight-stage English parametric equalization provides five filter choices:
- Parametric, Lowshelf, Highshelf, Lowpass, Highpass;
- Provides customized operation interfaces for terminal users. A maximum of 30 devices can be managed on one interface.
- With the central control function, support RS232, RS485, UDP three control modes, can be the system power, signal switching, environmental control, audio control and other overall control, to achieve a key to open the system required functions
|
| 16CH Professonal DSP With USB Sound card
- Professional audio processor support 12 way analog input and output a,It provides low delay and high fidelity audio signal transmission under the support of high broadband network.
- Processor :ADI SHARC 21489@450 MHz SIMD;
- DSP processing capacity :400 MIPS, 1.6 GFLOPS;
- Provide 8 devices for online operation at the same time;
- Built-in one in one out USB sound card, support music playback, recording and soft video conference (such as: ZOOM, Tencent conference, Dingding conference, etc.);
- Bus type AEC, tail time: 512ms, convergence rate: 60dB/S, echo cancellation amplitude: 60dB;
- Independent channel AFC (feedback suppression), using notch algorithm, sound transmission gain increase amplitude: 10dB;
- Noise suppression (ANS), signal-to-noise ratio increased by 18dB
- Dodge device (Ducker);
- Noise gain compensator (ANC)
- Gain sharing automatic mixing (AMC), Gate Mixer;
- 12 period of British equilibrium parameter, provides 5 kinds of filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass;
- Provides customized operation interfaces for terminal users. A maximum of 30 devices can be managed on one interface.
- Support camera tracking;
- With 8-way GPIO;
- With the central control function, support RS232, RS485, UDP three control modes, can be the system power, signal switching, environmental control, audio control and other overall control, to achieve a key to open the system required functions.1U Whole aluminum chassis
|
| 16CH Professonal DSP With Dante Module - USB Background music playback and recording function
- Support mobile phone, tablet control and distributed cloud control
- DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function
- Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
- Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
- Full function matrix remix
- Built-in automatic camera tracking function
- Support for scenario presets；
- Automatic memory protection when power off
- 1U Whole aluminum chassis
|
Advantages:
1.Company: Innovative
FHB Audio is driven by innovation. We are continuously developing new technologies that provide time saving methods that benefit you and our dealer network. Our innovative solutions focus on everyday use cases and how our products can cut down installation times, reduce maintenance requirements, increase productivity, and provide you long-lasting reliability.
2.Wide & Deep Products Line
We provide over 200 audio & Video products, as well as a series of Dante products, such as Digital Signal processor, Digital microphone system,Dante signal processor, 2CH Dante AVUO,2CH Dante wall plate,4CH Dante box., Dante Bluetooth panel, Dante microphone, and Dante speaker etc…
Our industry-leading support team makes it easy for you to choose the right product and provide the right system solutions.
3.Professional & Fast Service,
24 hours online services to provide suggestions and solutions for customer.
After-Sales Technical Support /Product Maintenance
Wiring/Installation/Debugging Instruction
4.OEM/ODM Solutions
Professional System Designers to assist in product selection and system design to meet your specific needs
